Introduction

Todo

  • explain how to use the library
    • demonstrating in particular the various ways to build noise-tolerant FSA’s (silent transitions, default transitions, global and state max_noise),
    • explaining the notion of token,
    • explaining the role of finish(), and why a token on a final state may not immediately return a match;
  • the structure of tokens (as returned by feed() and feed_all();
  • some of the design choices of the library,
    • especially why an empty sequence is never a match, even if the ‘start’ state is marked as terminal.

Bits and pieces

Overriding matches

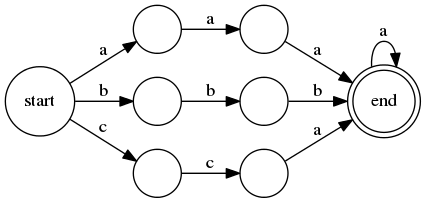

The noise-torelant FSM below, fed with ababab, will yield aaa only if fsa.allow_override is set to false, but it will yield aaa and bbb if it is set to true. Note that, if fed with acaca, with fsa.allow_override set to true, it will yield aaa and cca, where the last a participates in both matches.

digraph example_allow_override { rankdir=LR node[shape=circle,label=""] s0[label=start] s0 -> sa1 [label=a] sa1 -> sa2 [label=a] sa2 -> end [label=a] end -> end [label=a] s0 -> sb1 [label=b] sb1 -> sb2 [label=b] sb2 -> end [label=b] s0 -> sc1 [label=c] sc1 -> sc2 [label=c] sc2 -> end [label=a] end[shape=doublecircle,label="end"] }

Note however that automata work in a greedy way, so the automaton above is fed with ccaa will only yield ccaa, it will never yield cca, regardless of fsa.allow_override.
