Introduction

Todo

  • explain how to use the library
    • demonstrating in particular the various ways to build noise-tolerant FSA’s (silent transitions, default transitions, global and state max_noise),
    • explaining the notion of token,
    • explaining the role of finish(), and why a token on a final state may not immediately return a match;
  • the structure of tokens (as returned by feed() and feed_all();
  • some of the design choices of the library,
    • especially why an empty sequence is never a match, even if the ‘start’ state is marked as terminal.

Bits and pieces

Greedy matches

Automata will try to return the longest possible matches for a given stream. This means that a match will not be detected as soon as it is detected, as it may later yield a longer match. To ensure that all pending matches are returned, one must use the finish() method.

For example, in the following FSA, a match will not be returned immediately after a is received. If the stream is abbbc (or abbb and then finish()), the only match will be abbb.

digraph example_abstar { rankdir=LR node[shape=circle,label=""] s0[label=start] s0 -> s1 [label=a] s1 -> s1 [label=b] s1[shape=doublecircle,label="end"] }

This greedy behaviour must however be described more precisely: a match A will inhibit another match B if: * the sequence of events of B is a prefix of the sequence of events of A, and * the terminal state of B has been reached at some point by A.

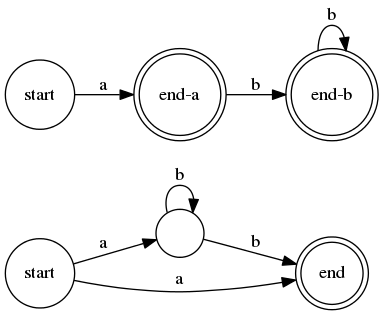

Hence, in the two following FSA fed with abbbc, the only match will be abbb, even if allow_ovelap is set to true.

digraph example_abstar_alt { rankdir=LR node[shape=circle,label=""] s0[label=start] s0 -> s1 [label=a] s0 -> s2 [label=a] s1 -> s1 [label=b] s1 -> s2 [label=b] s2[shape=doublecircle,label="end"] t0[label=start] t0 -> t1 [label=a] t1 -> t2 [label=b] t2 -> t2 [label=b] t1[shape=doublecircle,label="end-a"] t2[shape=doublecircle,label="end-b"] }

However, in the following FSA fed with abbbc and configured with allow_overlap set to true, two matches a and abbb will be returned, as the former has a terminal state that was never reached by the latter.

digraph example_abstar_two_matches { rankdir=LR node[shape=circle,label=""] s0[label=start] s0 -> s1 [label=a] s0 -> s2 [label=a] s2 -> s2 [label=b] s1[shape=doublecircle,label="end-a"] s2[shape=doublecircle,label="end-b"] }

Overriding matches

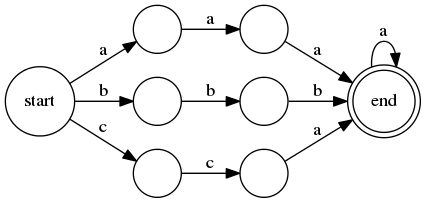

The noise-torelant FSM below, fed with ababab, will only yield aaa if fsa.allow_override is set to false, but it will yield aaa and bbb if it is set to true. Note that, if fed with acaca, with fsa.allow_override set to true, it will yield aaa and cca, where the last a participates in both matches.

digraph example_allow_override { rankdir=LR node[shape=circle,label=""] s0[label=start] s0 -> sa1 [label=a] sa1 -> sa2 [label=a] sa2 -> end [label=a] end -> end [label=a] s0 -> sb1 [label=b] sb1 -> sb2 [label=b] sb2 -> end [label=b] s0 -> sc1 [label=c] sc1 -> sc2 [label=c] sc2 -> end [label=a] end[shape=doublecircle,label="end"] }

Note however that automata work in a greedy way, so the automaton above is fed with ccaa will only yield ccaa, it will never yield cca, regardless of fsa.allow_override.

This notion of “greedyness” (greed?) can be tricky... It can be summed up
